Skate MP2 - MP4

Self-Lubricated Bearing for very high loads in low speed rotating applications
icon print pdf
OVERVIEW

SELF-LUBRICATED BEARINGS FOR VERY HIGH LOADS IN LOW SPEED ROTATING APPLICATIONS

For extreme conditions and zero clearance
Available in any dimensions both in the shape of cylindric and flanged bearing
Preformed from calibrated tape

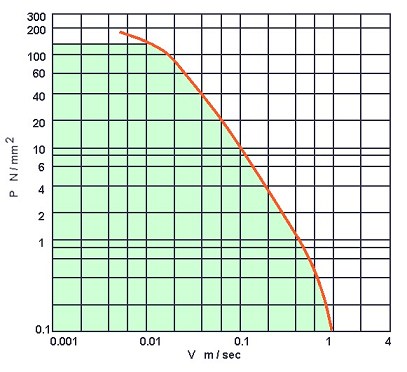

LOAD VERSUS SPEED   PV



PLEASE INQUIRE TECHNICAL SUPPORT ABOUT DIMENSIONS AND COUPLING TOLERANCES
         PRODUCT
CHARACTERISTICS SPECIFICATION UNIT MP2 MP4

Color

     brown

brown

Thickness

   mm +0.02/-0.02 0.48

0.78

Density

 Din 53479 g / cm3 3.75

4.40
Weight   g / m2 2000

3400
Temperature range

°C

 -200  +180

-200 + 180
Thermal expansion D696-70 10-6 / °C 18.5

18.5
Tensile strength

Din 53455

 N / mm2 50

50
Elongation at break

Din 53455

 % 25

36
Deformation under load 100 N/mm2
1 h a 23°C
1 h a 100°C

mm

 0.015
0.030

0.015
0.030
Friction coefficient
static
dynamic		     0.13
0.12

0.13
0.12

PV max.

   N/mm2   x   m/sec 1

1
